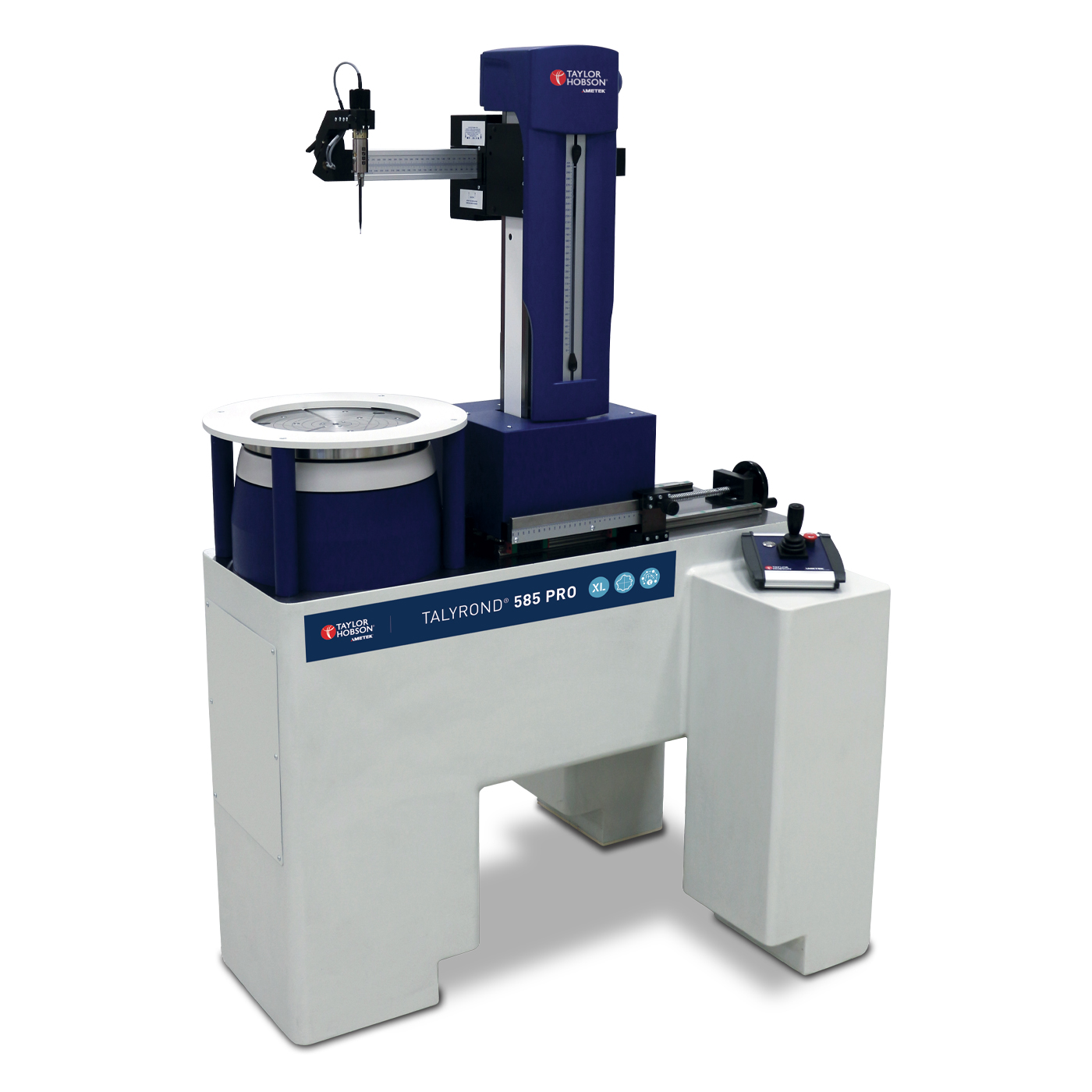

The Talyrond® 565/585 XL PRO with frictionless air bearing spindle and adjustable column is the ideal system for measurement of large diameter components and non-rotationally symmetric components up to 1 meter in diameter.
This roundness tester includes features such as fully automated centre and level and automatic gauge calibration, which greatly reduces measurement and set up time thus increasing throughput.
The movable column is adaptable for larger diameter bearings enabling roundness and flatness measurement beyond the scope of standard roundness systems. Coupled with a fully automated arm attitude/orientation mechanism, the Talyrond® 565/585 XL PRO enables access to the most difficult of components.

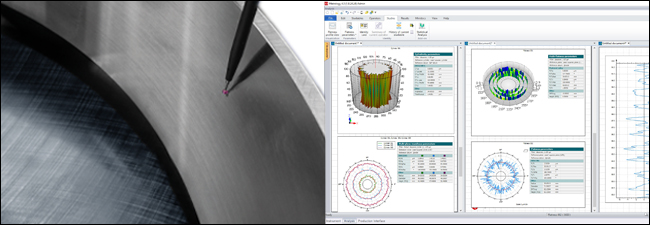

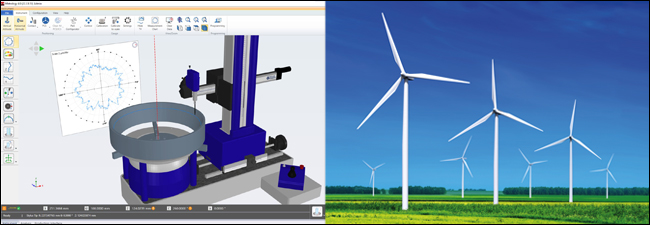

Powered by Metrology 4.0, easy to use software with an intuitive user-interface, virtual display and real time control. The state-of-the-art point and move axis control function delivers precise positioning and accurate measurement.
Key features
- 具有横向跟踪式功能的自动调心与调平具有横向跟踪式功能的自动调心与调平
- 自动标定传感器
- 自动转动测量头及手动转动测量头等两项专有权利
- 垂直直线度测量立柱高达1200 mm
- 大直径测量，多种尺寸选择的立柱及300 mm的横臂
- Metrology 4.0 Smart Software
Applications
- Inner bearing races
- Roller bearings
- Jet engines

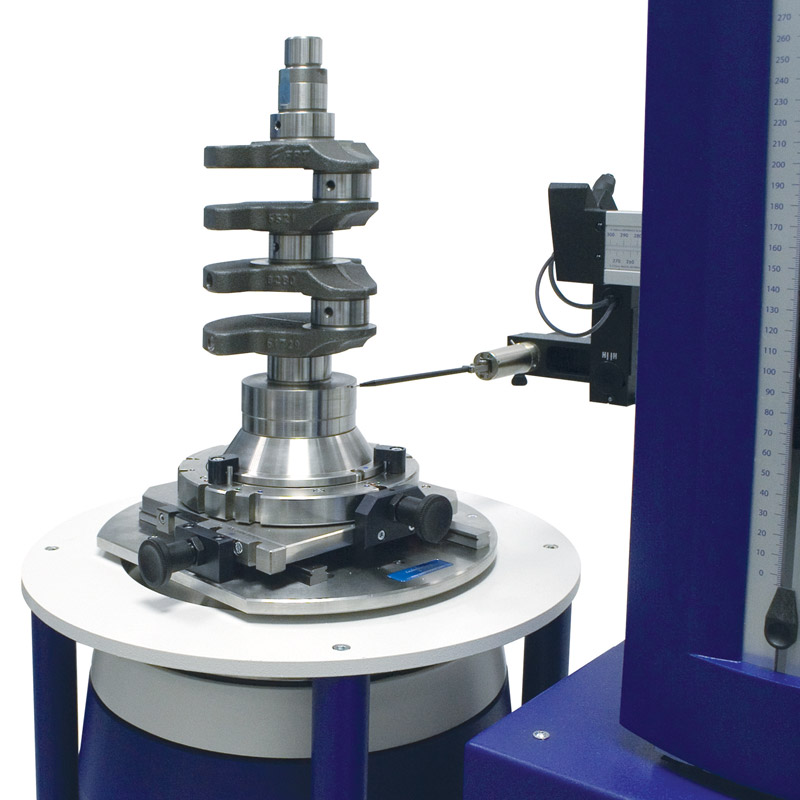

- Crankshafts

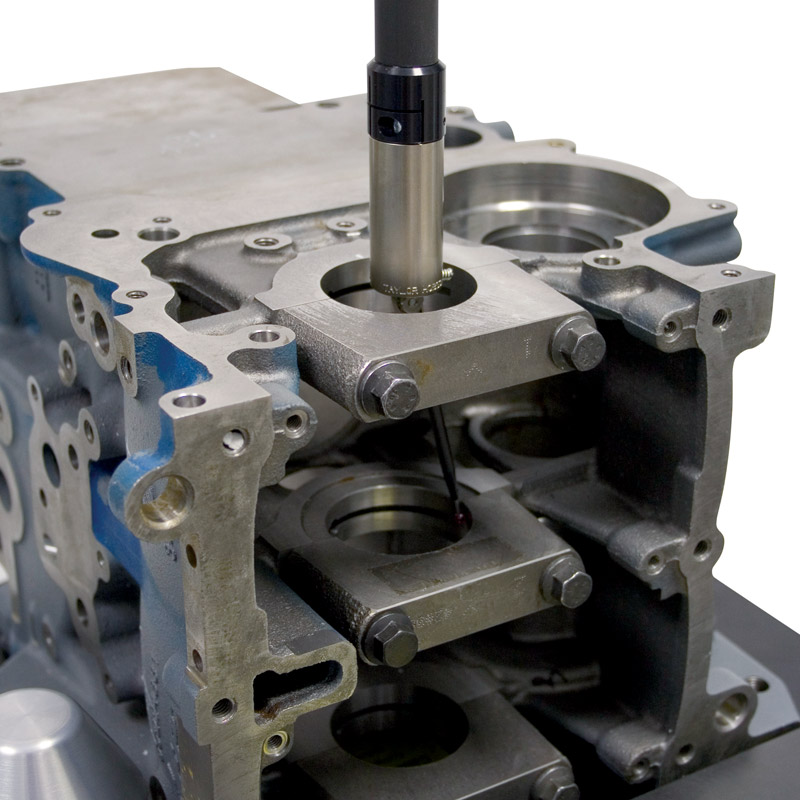

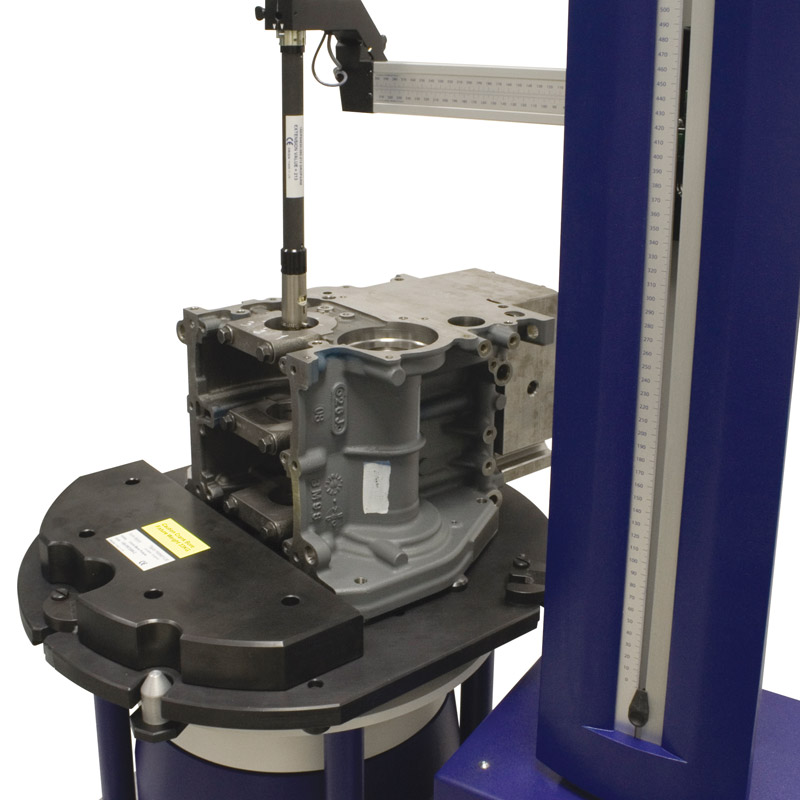

- Cylinder heads and blocks
Large diameter high precision bearings
The Talyrond® 565/585 XL PRO systems come with a frictionless air bearing spindle with high load capacity and excellent spindle stiffness. Large diameter bearings can be measured to a high degree of accuracy and with a high degree of resolution thanks to the massive 72,000 data point resolution of the systems high precision encoder.
Added to the system’s roundness/flatness capability, each Talyrond® 565/585 XL PRO instrument comes with Harmonic and Velocity analysis software making it a powerful tool for the analysis of bearing surfaces. Velocity analysis enables bearing manufacturers to evaluate harmonics with respect to amplitude and predict function with respect to speed.
Small jet engine and turbine components
Whether a supplier of engine components or a maintenance, repair and overhaul facility the XL range can help to control engine efficiency and improve engine build time by the analysis of roundness, flatness and form. Parameters such as eccentricity and run-out added to their angular direction allow prediction and control of out of balance situations particularly on stacked components.
Features such as harmonic analysis and velocity analysis provide further information to aid in prediction of vibration and noise.
